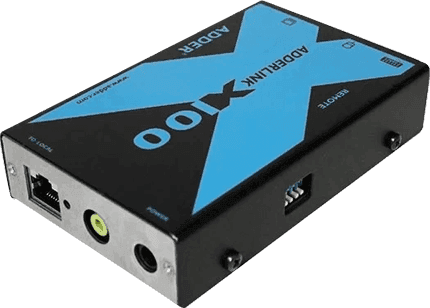

ADDERLink X100

ADDERLink X100s have been designed for use in applications where keyboard, mouse, high quality video and audio needs to be extended no more than 100m (330ft) over category 5 or higher UTP cable.

The ADDERLink X100s provide industry-leading video clarity, audio quality and compatibility.

Video performance

Industry leading resolutions of 1600 x 1200 are achievable up to 100m (330ft), 1900 x 1440 up to 50m (165ft).

Video compensation

The ADDERLink X-100 applies signal compensation that allows for smooth and fine adjustments providing great video quality up to 100m.

Emulated DDC

Unless an extender actively supports DDC some wellknown high performance video cards cannot be used at high resolutions. The ADDERLink X-100s fully support DDC.

USB Emulation

When using an X-100 pair to extend a CPU with a USB keyboard and mouse interface, it is ensured that the keyboard and mouse are continually emulated for maximum availability and essential functionality such as country code reporting for Sun CPUs.

Brightness control

The ADDERLink X-100s offer their own brightness correction to ensure images are crisp, clear and bright.

Audio

Optional digital stereo audio delivers high fidelity audio for speakers.

Variety of models available

To suit the maximum possible number of applications the X-100 is available in a number of models, PS/2 and video (X-100-PS2/P) PS/2, video and audio (X-100A-PS2/P), USB and video (X-100-USB/P) and USB, video and audio (X-100A-USB/P).

Video resolutions1600 x 1200 at distances up to 100m/330ft,1900 x 1440 at distances up to 50m/165ft

Extension distance

Up to 100m/330ft using CATx cable (x=5,5e,6,7)

Devices supported

Supports any computer with PS/2 or USB style keyboard and mice, flat-screen and CRT style monitors with standard HD-15 video connectors and optional audio through 3.5mm audio jack

O/S compatibility

All known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare etc.

Connectors (local)

Video: HDD15
Keyboard Mouse: MiniDin6
Optional audio: 3.5mm jack
CATx: 1 x RJ45 connector
Or
Video: HDD15
Keyboard Mouse: USB type A
Optional audio: 3.5mm jack
CATx: 1 x RJ45 connector

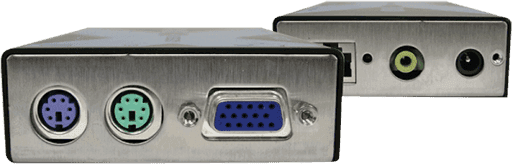

Connectors (remote)

Video: HDD15
Keyboard Mouse: MiniDin6
Optional audio: 3.5mm jack
CATx: 1 x RJ45 connector
Power: 2.5mm DC jack

Physical (local)

Combination of plastic enclosure and cables
Enclosure: 64mm x 45mm x 25mm
Cables: 340mm long

Physical (remote)

All metal case, 123mm x 74mm x 26 mm

Power supply

100 – 240VAC 50/60Hz

Operating temperature

0 – 40 deg C (32 to 104 deg F)

Approvals

CE, FCC

Hai bisogno di maggiori informazioni?

Per maggiori informazioni

Modello

ModelloArticoloDescrizione
X100/RX100ADDERLink X100
X100A/RX100AdderLink X100 PS/2 KVM & Audio Remote User Station
X100A-PS2/PX100AdderLink X100 PS/2 & VGA KVMA CATx Extender Pair (PS2 CAM) 100 Mtr
X100AS/RX100AdderLink X100 PS/2 KVM & Audio Remote User Station Inc SKEW Compensation
X100A-USB/PX100AdderLink X100 PS/2 & VGA KVMA CATx Extender Pair (USB CAM) 100 Mtr
X100-PS2/PX100AdderLink X100 PS/2 & VGA KVM CATx Extender Pair (PS2 CAM) 100 Mtr
X100-USB/PX100AdderLink X100 PS/2 & VGA KVM CATx Extender Pair (USB CAM) 100 Mtr
